1.5" White Teflon (PTFE) Bevel Seat Gasket
$1.581.5" White Teflon (PTFE) Bevel Seat GasketOD: 1.89" ID: 1.36"Temperature Range: -100F to +500F -
1.5" Black EPDM Bevel Seat Gasket
$0.901.5" Black EPDM Bevel Seat GasketOD: 1.89" ID: 1.36"Temperature Range: -60F to +300FExcellent: Steam, CausticPoor: Petroleum Oil, Milk Fat -
2" White Teflon (PTFE) Bevel Seat Gasket
$1.932" White Teflon (PTFE) Bevel Seat GasketOD: 2.41" ID: 1.89"Temperature Range: -100F to +500F -
2" Black Buna Bevel Seat Gasket
$0.422" Black Buna Bevel Seat GasketOD: 2.41" ID: 1.89"Temperature Range: -20F to +200FExcellent: Petroleum Oils, Ethylene Glycol, Milk FatPoor: Aromatic Hydrocarbons, Brake Fluid, Ketones, Strong Acids or Caustics -
1.5" Black Buna Bevel Seat Gasket
$0.401.5" Black Buna Bevel Seat GasketOD: 1.89" ID: 1.36"Temperature Range: -20F to +200FExcellent: Petroleum Oils, Ethylene Glycol, Milk FatPoor: Aromatic Hydrocarbons, Brake Fluid, Ketones, Strong Acids or Caustics -
1.5" White Silicone Bevel Seat Gasket
$1.251.5" White Silicone Bevel Seat GasketOD: 1.89" ID: 1.36"Temperature Range: -65F to +390FExcellent: Mineral Oils, Ozone, Dry Heat, Mild CausticsPoor: Petroleum Oils, Ketones, Concentradted Acids, Tear Resistance -
2" Black EPDM Bevel Seat Gasket
$0.952" Black EPDM Bevel Seat GasketOD: 2.41" ID: 1.89"Temperature Range: -60F to +300FExcellent: Steam, CausticPoor: Petroleum Oil, Milk Fat -
1" White Teflon (PTFE) Bevel Seat Gasket
$0.781" White Teflon (PTFE) Bevel Seat GasketOD: 1.33" ID: 0.89"Temperature Range: -100F to +500F -
1.5" Black Viton Bevel Seat Gasket
$1.951.5" Black Viton Bevel Seat GasketOD: 1.89" ID: 1.36"Temperature Range: +5F to +400FExcellent: Strong Acids, Petroleum Products, Solvents, OilPoor: Hydrocarbons, Ketones, Steam -
3" Black EPDM Bevel Seat Gasket
$1.753" Black EPDM Bevel Seat GasketOD: 3.48" ID: 2.88"Temperature Range: -60F to +300FExcellent: Steam, CausticPoor: Petroleum Oil, Milk Fat -
1" Black EPDM Bevel Seat Gasket
$0.901" Black EPDM Bevel Seat GasketOD: 1.33" ID: 0.89"Temperature Range: -60F to +300FExcellent: Steam, CausticPoor: Petroleum Oil, Milk Fat -
3" White Teflon (PTFE) Bevel Seat Gasket
$4.683" White Teflon (PTFE) Bevel Seat GasketOD: 3.48" ID: 2.88"Temperature Range: -100F to +500F

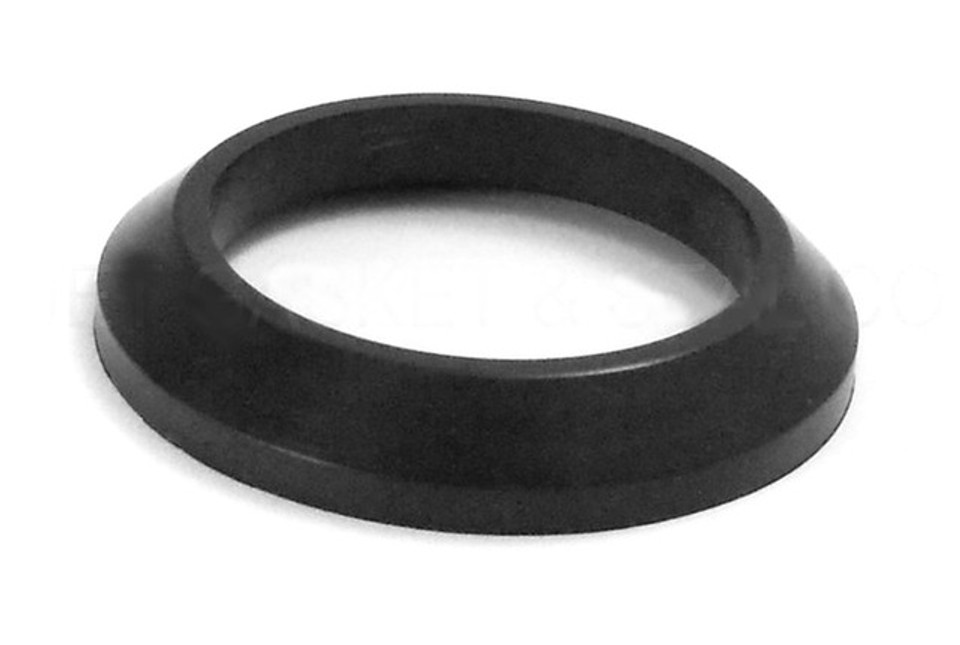

Bevel Seat Gasket
Bevel Seat Gaskets are sanitary sealing components used with threaded bevel seat fittings—common in dairy, beverage, and brewery processing lines. These gaskets for bevel seat style fittings create a reliable seal between ferrules.
Available in standard inch sizes like 1.5", 2", 3", 4", and materials including EPDM, Silicone, Buna, and PTFE.
Available in standard inch sizes like 1.5", 2", 3", 4", and materials including EPDM, Silicone, Buna, and PTFE.
